Using SSHFS¶

SSHFS, or the secure shell file system, allows users to interact with the directories and files from their Science Portal account directly on their local machine.

Installation¶

Software installation is required to use this tool.

Linux: SSHFS is Linux-based software that needs to be installed on your local computer. On Ubuntu and Debian based systems, it can be installed through apt-get:

sudo apt-get install sshfs

Mac OSX: Often SSHFS is already installed; if not, you will need to download FUSE and SSHFS from the osxfuse site

Prepare your Arc account¶

A public SSH key will need to be installed into your Arc home directory. Ensure you have a .ssh folder in your /home/[your_cadc_username] folder. You can do this through the UI:

https://www.canfar.net/storage/arc/list/home

Ensure you are logged in using the pulldown in the top right menu.
Visit your Home folder.

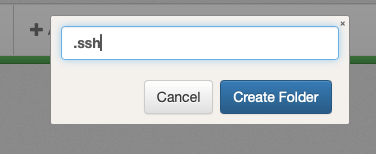

If there is no .ssh folder listed, create one.

Ensure you have a file called authorized_keys with your SSH public key in it. This public key should match which ever private key you are using to authenticate with. For example, if your private key on your local machine is ${HOME}/.ssh/id_rsa, then your public key is likely ${HOME}/.ssh/id_rsa.pub.

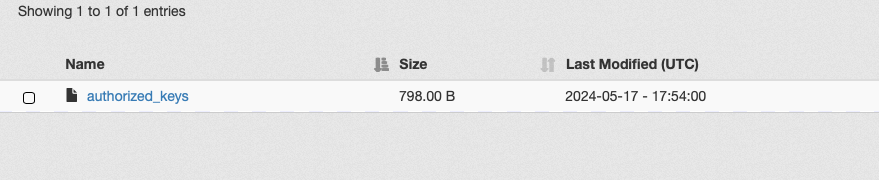

Upload the authorized_keys file to the newly created .ssh folder on Arc by following the link to the folder in the browser, then Uploading the file

Now you can proceed to mounting it.

Mount the Remote File System¶

For Ubuntu/Debian Linux or Mac OSX, the instructions are below. Instructions for Windows users can be found at the bottom of this page.

To start, we will need to create a local directory in which to mount the file system, "arc":

mkdir $HOME/arc

Now we can mount the file system locally using the following command, based on which OS you are running. You will be asked for your CADC password during this step.

On Ubuntu/Debian:

sshfs -o reconnect,ServerAliveInterval=15,ServerAliveCountMax=10 -p 64022 [your_cadc_username]@ws-uv.canfar.net:/ $HOME/arc

On Mac OSX:

sshfs -o reconnect,ServerAliveInterval=15,ServerAliveCountMax=10,defer_permissions -p 64022 [your_cadc_username]@ws-uv.canfar.net:/ $HOME/arc

The extra defer_permissions switch works around issues with OSX permission handling. See this page for more details.

Synch Local and Remote Directories with rsync¶

With the steps above in place, the rsync ("remote synch") command can be used. rsync uses an algorithm that minimizes the amount of data copied by only moving the portions of files that have changed. Further rsync examples and docs are here.

The synch is performed using the following:

rsync -vrltP source_dir $HOME/arc/destination_dir/

where

-v increases verbosity
-r recurses into directories
-l copies symlinks as symlinks
-t preserves modification times (use the command man rsync for more details on why this option prevents resending already transferred data when not using -a)
-P keeps partially transferred files and shows progress during transfer

Pro tip: including a / after source_dir in the command above will transfer the directory contents without the main directory itself. i.e., if your source_dir contains a file called test, then :

rsync -vrltP source_dir $HOME/arc/destination_dir/

will add in the file as $HOME/arc/destination_dir/source_dir/test whereas:

rsync -vrltP source_dir/ $HOME/arc/destination_dir/

will add in the file as $HOME/arc/destination_dir/test

Unmounting the File System¶

If you have finished working with your files and want to disconnect from the remote file system, you can do this by:

umount $HOME/arc

NB: If you run into problems with the original sshfs command and need to run it again, you will likely need to unmount first.
